Overhead Tools

Home » Products » Overhead Products » Overhead Tools

Corner Blocks (Series 62000)

Corner Blocks
Product Description

The DCD Corner Block is used to guide cable around turns whether you are pulling cable in the horizontal or vertical position. The Corner Block maintains a 19" radius through the arc of the corner block. The Corner Blocks can be used for pulling in copper, fiber, or coaxial cables. There are two adjustable rollers used to secure cable in the Corner Block.

Catalog Page

Catalog Page

Universal Corner Pole Bracket (Series 62300)

Universal Corner Pole Bracket
Product Description

The Universal Corner Block Pole Bracket is used to mount the corner blocks to poles in either the horizontal or vertical position. A 2" wide heavy-duty strap and ratchet are used to retain the Universal Corner Block Bracket to the pole.

Catalog Page

Catalog Page

Roller Cable Guide (Series 62400)

Roller Cable Guide
Product Description

The Roller Cable Guide is used to raise large diameter single cables or multiple cables up to the cable lasher when lashing to a supporting strand. When using cable blocks, the Roller Cable Guide can also be fixed in one position on the strand and used to pull cables in to the cable blocks. The Roller Cable Guide is made to be used on bare strand as well as when overlashing over existing cable.

Catalog Page

Catalog Page

Cable Placing Shoe (Series 62410)

Cable Placing Shoe
Product Description

The Cable Placing Shoe is a versatile shoe which makes lashing or pulling in cable much easier. When placing a cable in one operation, run the Cable Placing Shoe ahead of the lasher to raise the cable from reel to strand. When pulling the cable, secure the Cable Placing Shoe to first pole and raise cable up over the shoe. The Cable Placing Shoe comes equipped with a locking pin so it can't jump the strand.

Catalog Page

Catalog Page

Little Giant Slack Puller (Series 62500)

Little Giant Slack Puller
Product Description

The Little Giant Junior Slack Puller is a downsized version of our larger slack pullers. The Little Giant Junior Slack Puller prevents damage to the cable jacket and supporting strand on small diameter and self-supporting cables, which could occur if using larger size slack pullers.

Catalog Page

Catalog Page

Power Strap (Series 62550)

Power Strap
Product Description

Constructed of heavy cotton webbing in a cast-aluminum housing, the Power Strap will position or secure mechanical sleeves, hold cable firmly while splicing or to raise large aerial cable to the strand. The Power Strap will fasten items to trucks, hold bundles or secure gas bottles to poles. The Power Strap comes in standard 3-1/2' lengths 2" wide. Each strap is plastic tipped to prevent fraying.

Catalog Page

Catalog Page

Cable Placing Roller (Series 63000)

Cable Placing Roller
Product Description

The Cable Placing Roller is a heavy-duty cable block that can be used with 1, 2 or 3 cables up to 2" diameter. The cable dividers can be removed for a larger single cable or single piece of duct up to 5" diameter. The Modified Cable Placing Roller can carry three cables up to 2-3/4" diameter, or a single 7" diameter with the dividers removed.

Catalog Page

Catalog Page

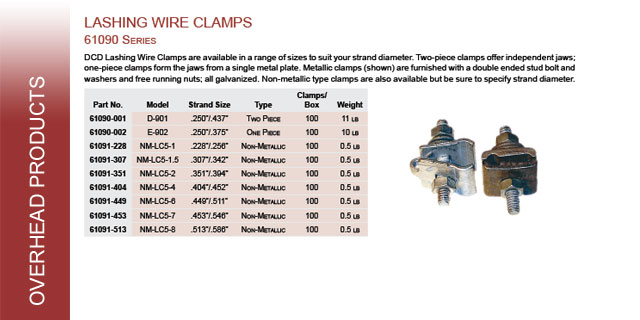

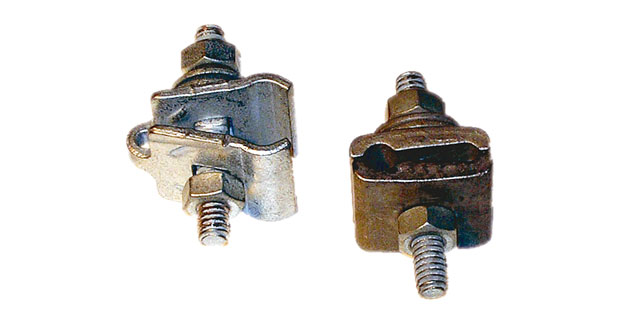

Lashing Wire Clamps (Series 61090)

Lashing Wire Clamps
Product Description

DCD Lashing Wire Clamps are available in a range of sizes to suit your strand diameter. Two-piece clamps offer independent jaws; one-piece clamps form the jaws from a single metal plate. Metallic clamps (shown) are furnished with a double ended stud bolt and washers and free running nuts; all galvanized. Non-metallic type clamps are also available but be sure to specify strand diameter.

Catalog Page

Catalog Page

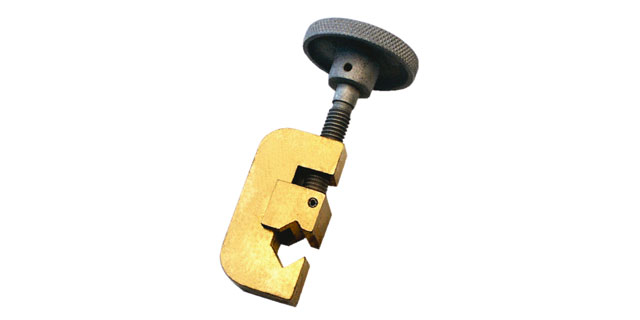

Temporary Lashing Wire Clamps (Series 62560)

Temporary Lashing Wire Clamps
Product Description

Use these Lashing Clamp to temporarily secure lashing wire to a termination point in mid-span or at a pole. This clamp is machined from solid cold drawn brass with a plated screw to eliminate corrosion if inadvertently left on strand for an extended period.

Catalog Page

Catalog Page
